Self-closing mixer tap TEMPOMIX 3, particularly easy operation, ADL-794BOX3-794200

Self-closing mixer tap TEMPOMIX

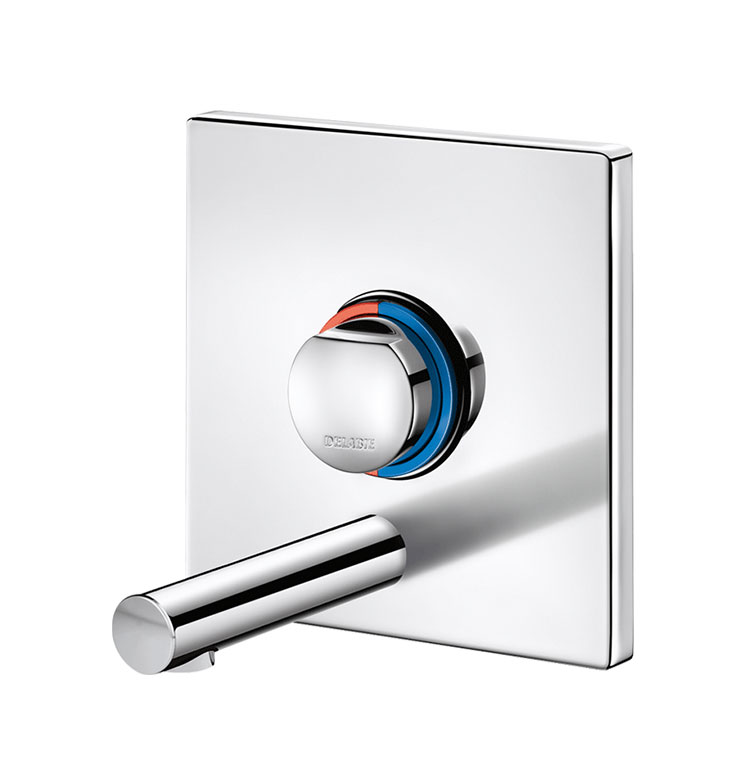

Self-closing mixer tap TEMPOMIX 3 for washbasin, concealed installation:
Cover plate chrome-plated metal 160 x 160 mm, vandal-resistant.
Waterproof flush-mounted box:
- Flange with integrated seal.
- Water connection outside the box and maintenance from the front.
- Flexible installation (stud wall, solid wall, panel).
- Suitable for wall thicknesses from 10 to 120 mm (the installation depth of the flush-mounted box is at least 93 mm).
- Adaptable to standard or "pipe-in-pipe" piping.
- Pre-shut-offs with flow rate adjustment, protective filter, backflow preventer and cartridge integrated and accessible from the front.
- Single-lever mixer tap TEMPOMIX 3 G 1/2.
- Supplied in 2 parts: Components protected during flushing of the pipelines.
Temperature setting and triggering via the operating handle.
Hot water limitation (adjustable by installer).
Particularly easy operation.
Running time ~7 seconds.
Flow rate preset to 3 l/min at 3 bar, adjustable from 1.5 to 6 l/min.
Low-scaling aerator.
Spout L. 110 mm smooth inside and with low water volume (limits bacterial deposits).
Suitable for people with limited mobility.



Files and downloads:

DATA SHEET:

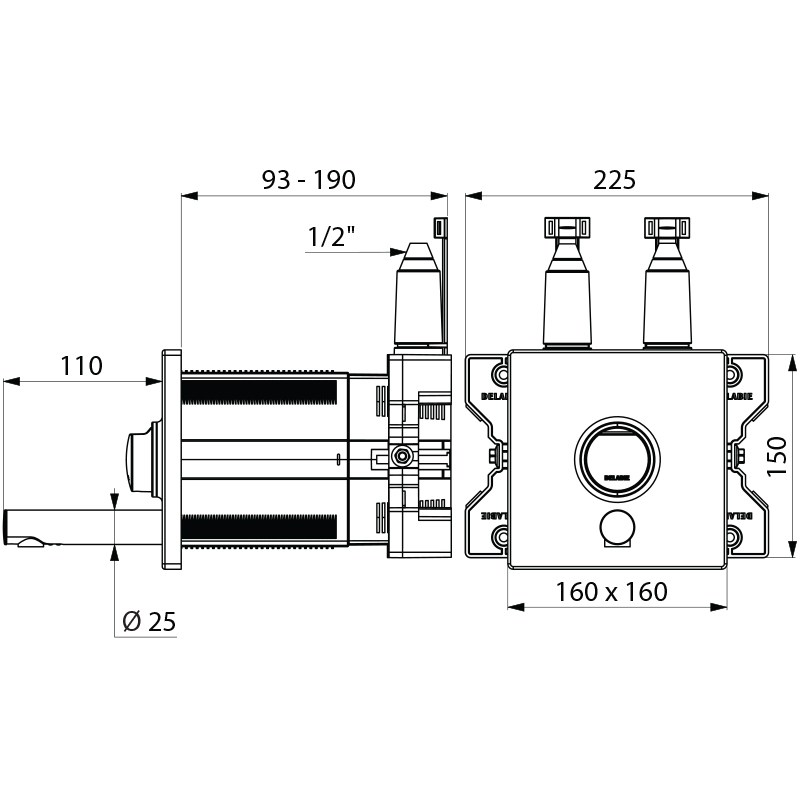

Technical drawing:

On request

Submit a request
SKU: ADL-794BOX3-794200 Categories: ,
