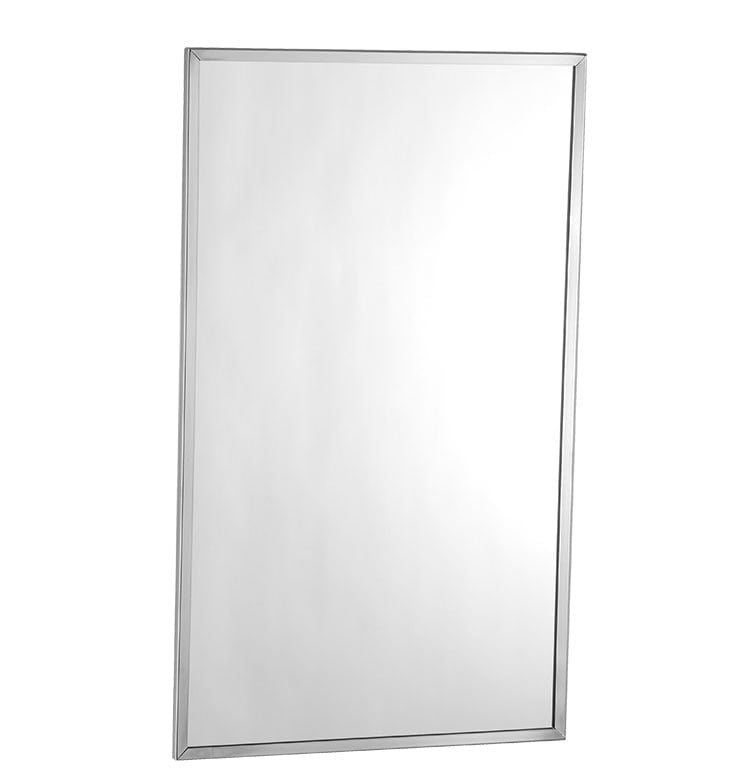

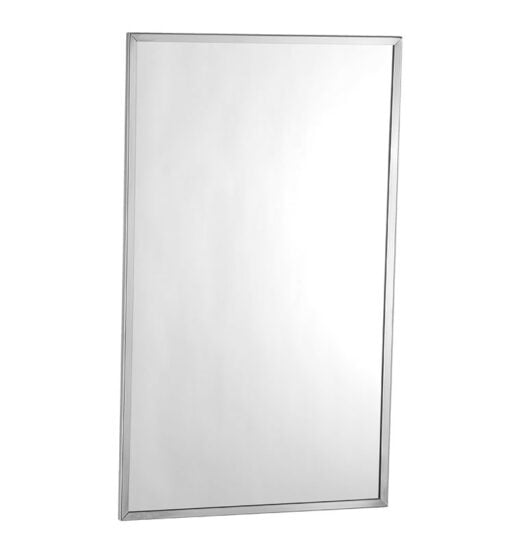

Mirror with U-profile frame by Bobrick, B-165 series
CHF 105.00 - CHF 479.00 excl. VAT.
One-piece, 13 x 13 x 13 mm profile frame. Stainless steel CrNi 18/10 (1.4301), highly polished, with mitred edges. Frame screws allow easy mirror replacement. Mirror: 6 mm glass mirror, grade 1; 15-year guarantee on silver coating. Galvanised steel back panel. Mirror is attached to concealed wall suspension with theft-proof lock.
Versions:
Model no. | Wide | Height |
B-165 1824 | 46 cm | 61 cm |
B-165 1830 | 46 cm | 76 cm |
B-165 1836. | 46 cm | 91 cm |
B-165 2430 | 61 cm | 76 cm |
B-165 2436 | 61 cm | 91 cm |
B-165 2448 | 61 cm | 122 cm |
B-165 2460 | 61 cm | 152 cm |
B-165 4836 | 91 cm | 183 cm |
Files and downloads:
DATA SHEET: | |

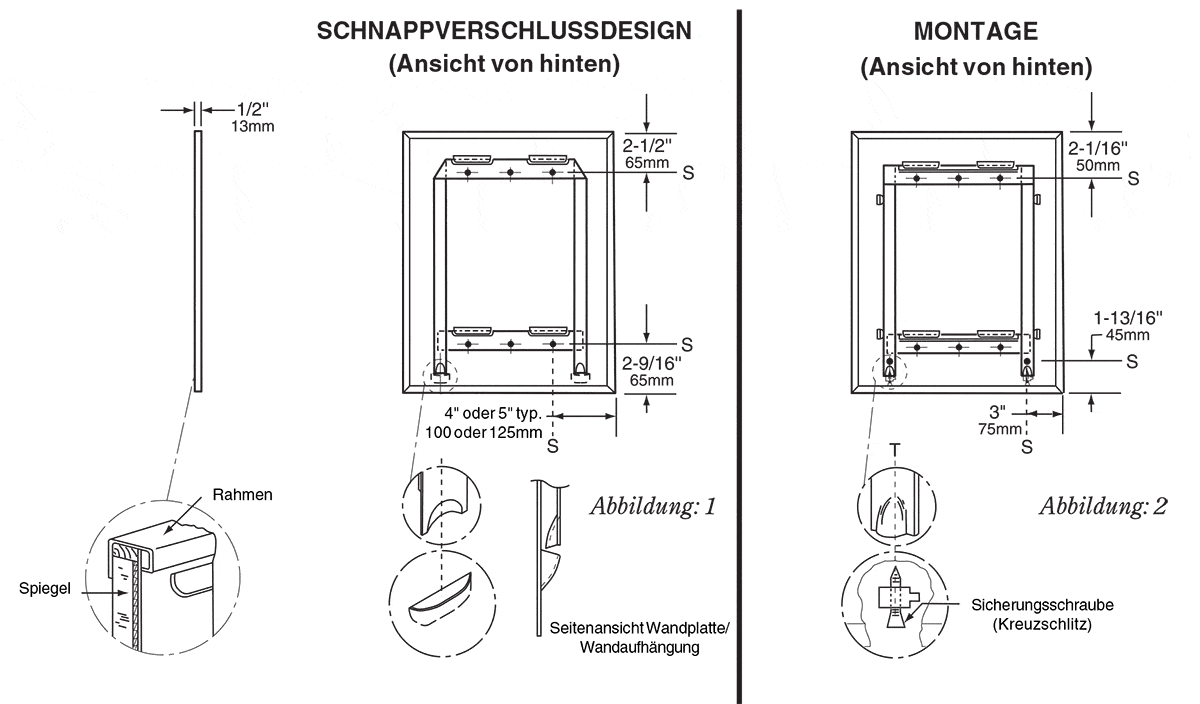

Technical drawing: |
