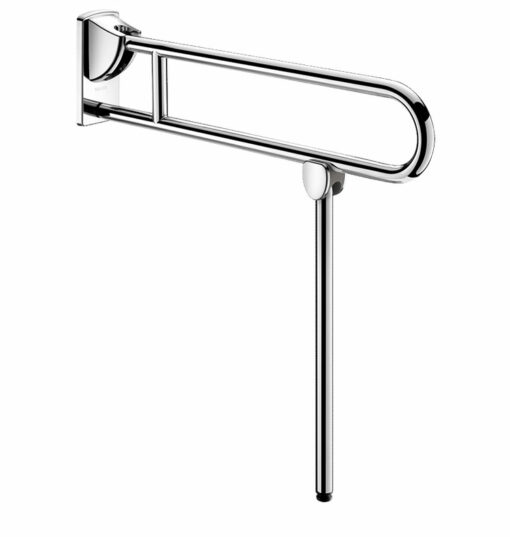

Folding support rail with foot, shiny stainless steel, l. 850 mm, ADL-510170P
Folding support rail with foot high-gloss stainless steel - L. 850 mm
Folding support rail Ø 32 with foot for persons with limited mobility.
Folding support rail for WC or shower.
Allows side access in the raised position.
When folded down, provides support and assistance when standing up and transferring.
Version with foot that retracts automatically: serves as a reinforced support if wall mounting is not sufficient.
Foot height adjustable from 760 to 780 mm.
Locks in vertical position, braked folding down.
Folding support handle made of bacteriostatic stainless steel material 1.4301.
Stainless steel highly polished UltraPolish: homogeneous, non-porous surface facilitates cleaning and ensures better hygiene.
Concealed fixing by stainless steel plate material 1.4301, thickness 4 mm.
Stainless steel screws for solid wall included.
Dimensions: 850 x 800 x 105 mm.
Tested to more than 250 kg, recommended maximum user weight: 170 kg.
Files and downloads:
DATA SHEET: | |

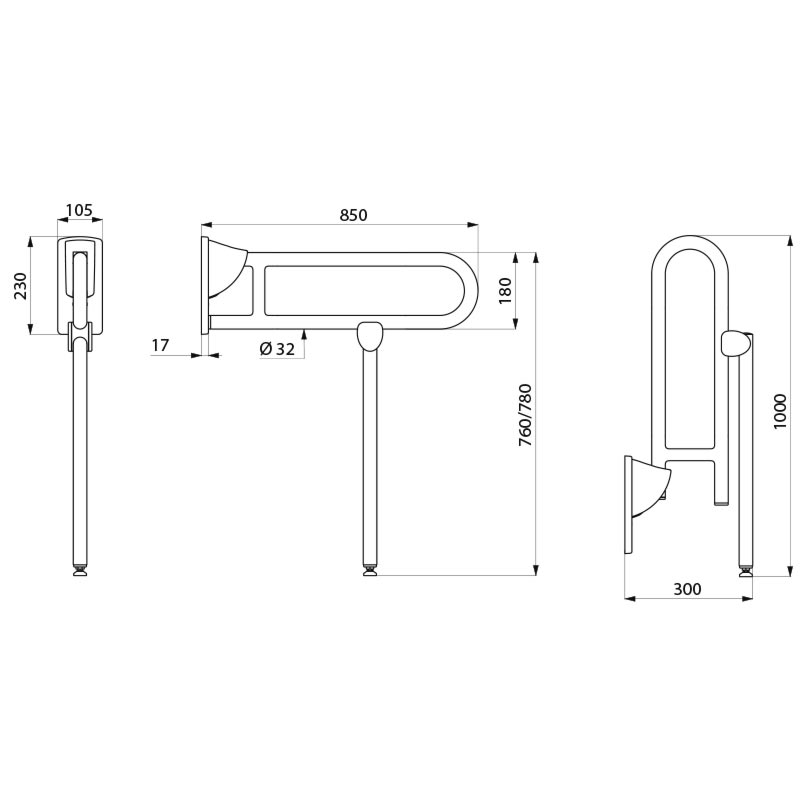

Technical drawing: |
CHF 500.00 excl. VAT.
