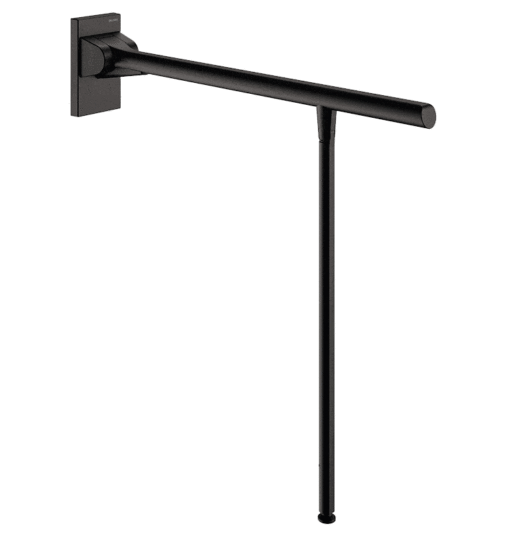

Folding support handle with Be-Line® matt black base, l. 850 mm,
Folding support rail Be-Line® for people with restricted mobility.
When folded down, provides support and assistance when standing up and transferring, for WC or shower.
Allows side access in the raised position.
Removable: easy to clip off, with anti-theft device; number of handles in public facilities as well as post-installation as required.
Example: Hotels or hospitals that only accommodate people with limited mobility from time to time.
Folding handle with lock in vertical position and braked folding down.
Aluminium tube.
Rounded profile Ø 42 with ergonomic, flat front: prevents twisting of the hand on the handle and ensures optimum grip safety.
Surface powder-coated matt black for visually contrasting design to light walls.
Homogeneous surface facilitates cleaning and ensures better hygiene.
Concealed fixings by stainless steel flange material 1.4301, thickness 5 mm.
Stainless steel screws Ø 8 x 70 mm for solid wall included.
Foot serves as a reinforced support if wall mounting alone is not sufficient.

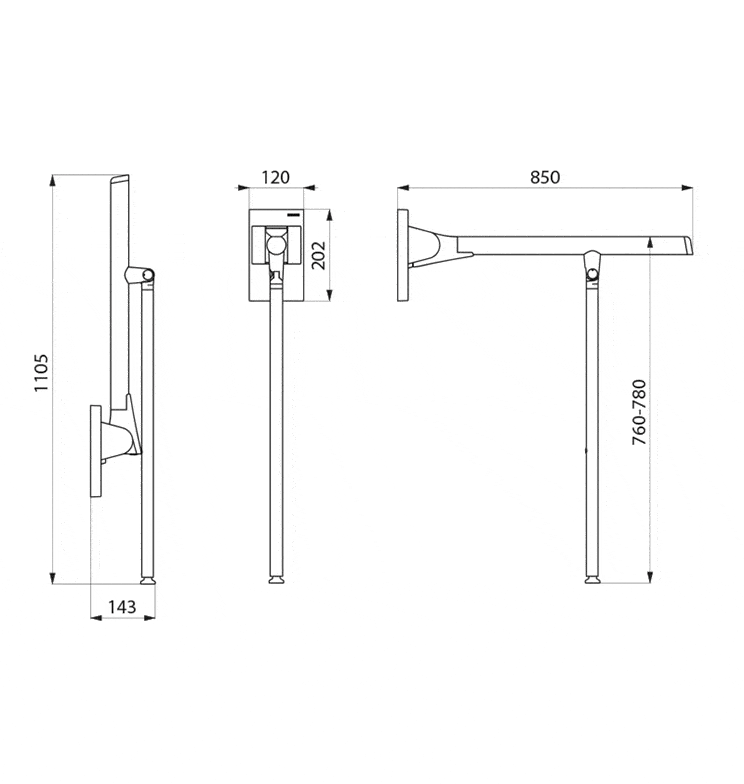

Dimensions: 850 x 825 x 120 mm.
Foot height adjustable: from 760 to 780 mm.
Tested to more than 200 kg, recommended maximum user weight: 135 kg.
Files and downloads:
DATA SHEET: | |
Technical drawing: |
CHF 725.00 excl. VAT.
